3/5 Layer Cosmetic Tubes Extruder Machine
Popular Mould Size Diameter (mm): 19, 22, 25, 30, 35, 40, 50
- Options:
-
- Auto PE granule feeder
- Auto color batch feeder
- Main Features
- PLC & HMI control.
- With a 19 mm free mould.
- New Type 5 layer extruder & cutter.
- Compare with the old type’s advantages.
- Save electric power, 3KWH, every hour.
- More simple control: integration temperature module control increases or reduces temperature by ONE button.
- Higher precision of rotary speed control, higher precision of material output, lower thickness tolerance.
- Automatic dosage mixer, automatic master batch mixer, automatic dosage master batch mixer.
Technical Parameters:
Plastic material has its own characters. In co-extrusion system, we use and combine several kinds of materials.Therefore, the characters of single layer tube can’t compete with the complex characters of co-extrusion tube.
Plastic material has its own characters. In co-extrusion system, we use and combine several kinds of materials.Therefore, the characters of single layer tube can’t compete with the complex characters of co-extrusion tube.
- Examples:
- Glossy surface ( using :EVOH/RESIN/PE)
- Extensive color combination ( using :PE+PEARL/PE+PLGMENT)

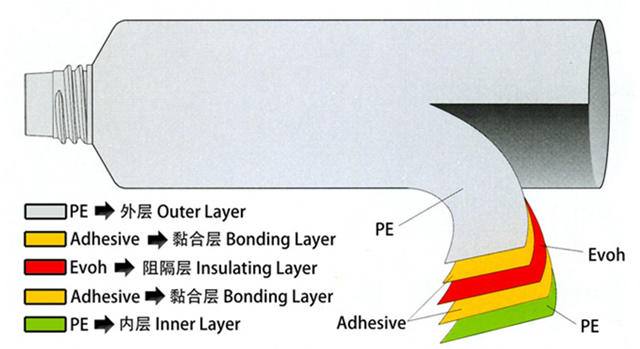

- Excellent barrier property （using : PE/TIE RESIN/EVOH/TIE RESIN/PE）
- Scratch and dust free (using :LDPE/LDPE/LLDPE)
- MAIN SPECIFICATIONS
- Screw Dia (inner): φ50mm, L/D: 30/1
- Screw Dia (resin): φ40mm, L/D: 28/1
- Screw Dia (EVOH): φ40mm, L/D: 26/1
- Screw Dia (outer): φ50mm, L/D: 32/1
- Motor: 7.5 HP×1 pcs, 5 P×2 cs, 10×1 pcs
- Water Consumption: 1 L/min
- Power Consumption: 95.5 kw
- Extrusion Linear Speed: 10.5 m/min (φ50 mm)
- Cutting Speed: 150 pcs/min
- Tube Dia Range: φ13～60mm
- Machine Size: 8500×3500×2000mm
- Total New Weight: appro 5200kg
★ Normal tube diameter and thickness
| diameter | φ19 | φ22 | φ25 | φ30 | φ35 | φ40 | φ50 |
| thickness | 0.40 | 0.40 | 0.40 | 0.45 | 0.50 | 0.50 | 0.55 |
| Components list: | ||
|---|---|---|
| NO. | Name | Brand |
| 1 | Transducer | Schneider, France |
| 2 | Servo | Panasonic, Japan |
| 3 | Motor | TECO, Taiwan |
| 4 | PLC | Omron, Japan |
| 5 | Contactor | Schneider, France |
| 6 | Button | IDEC, Japan |
| 7 | Touch screen (HMI) | Omron, Japan |
| 8 | Solid-state relay | CHNT |
| 9 | Thermocouple | K type by manufacturer |
| 10 | Switch power supply | Mean Well, Taiwan |
| 11 | Cable | Sun, China |
| 12 | Breaker | CHNT |
| 13 | Level controller | CKC, Taiwan |
| 14 | Time relay | Fotek, Taiwan |
| 15 | Intermediate relay | IDEC, Japan |
| 16 | Tachometer | Lion Power, China |
| 17 | Temperature controller meter | Teshow, Taiwan |
| 18 | Gearbox | Jiangyin, China |
| 19 | Screw | Zhejiang, China |
| 20 | Speed regulation button | TOCOS, Japan |
| 21 | Encoder | Omron, Japan |
| 22 | Water pump | Lingxiao, China (Journey 48m) |
| 23 | Vacuum pump | Fangli, Ningbo |
| 24 | Water tank, Cover Table-board | SS 304 |
| 25 | Hopper (dryer) | Hopper with dryer |
| 26 | Injection clamping line on tube body | non |
| 27 | Cutting | level |
| 28 | Speed of dia35 tube（？ meter/m） | 12—14m/minute |
