6-Colour/8-Colour Dry Offset Printing Machine
Main features for 6-Colour/8-Colour offset Printing Machine:

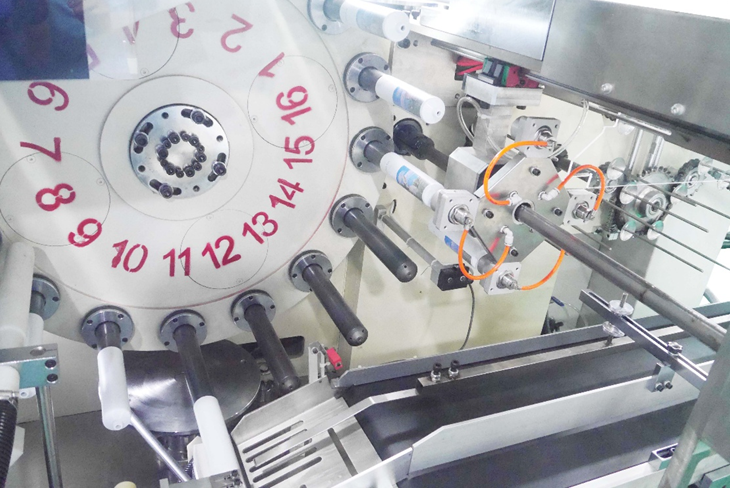

1、16 mandrills working positions
2、Corona system
3、UV Ink、UV vanish
4、Tilting tube inset
5、Can print without tube shoulder
6、Slicer from Taiwan“DEX”（14DF)
7、Concave-convex gear, rotaty drive gear main parts from Taiwan.
8、Motor— TPG from Japan
9、PLC—Mitsubishi, Japan.
10、Transducer—Panasonic, Japan.
11、Decoder, tube inset axle and bearings—-Japan
12、Voltage inspect, electric current—-Germany
2、Corona system
3、UV Ink、UV vanish
4、Tilting tube inset
5、Can print without tube shoulder
6、Slicer from Taiwan“DEX”（14DF)
7、Concave-convex gear, rotaty drive gear main parts from Taiwan.
8、Motor— TPG from Japan
9、PLC—Mitsubishi, Japan.
10、Transducer—Panasonic, Japan.
11、Decoder, tube inset axle and bearings—-Japan
12、Voltage inspect, electric current—-Germany
Main Specifications:
1、Main motor for ink base：7.5 HP，with rotate speed tracker, transducer.
2、Mandrill rotate motor：3 HP.
3、Dry oven motor：3 HP.
4、UV dry capacity：5 KW, 160 w/square cm.
5、Machine size：7500*2300*2000 mm.
6、Machine weight：7.5T.
7、Printing diameter：∅13-60 mm.
8、Printing length：Max 235 mm.
9、Speed：60-80 pcs/min.
10、Air consumption：6-8 kgs/square cm.
11、Total electric power：35 KW(with UV oven).
12、Voltage：3P 380 V/220 V.
2、Mandrill rotate motor：3 HP.
3、Dry oven motor：3 HP.
4、UV dry capacity：5 KW, 160 w/square cm.
5、Machine size：7500*2300*2000 mm.
6、Machine weight：7.5T.
7、Printing diameter：∅13-60 mm.
8、Printing length：Max 235 mm.
9、Speed：60-80 pcs/min.
10、Air consumption：6-8 kgs/square cm.
11、Total electric power：35 KW(with UV oven).
12、Voltage：3P 380 V/220 V.
Frequently Asked Questions
What industries do you serve?
We primarily serve the pharmaceutical and cosmetic packaging industries, providing complete solutions for ABL laminated tubes, PBL laminated tubes, and PE seamless cosmetic tube manufacturing.
What types of tube manufacturing projects do you undertake?
We undertake complete turnkey projects for:
1. ABL (Aluminium Barrier Laminate) Tube Manufacturing
2. PBL (Plastic Barrier Laminate) Tube Manufacturing
3. PE Seamless Cosmetic Tube Manufacturing
1. ABL (Aluminium Barrier Laminate) Tube Manufacturing
2. PBL (Plastic Barrier Laminate) Tube Manufacturing
3. PE Seamless Cosmetic Tube Manufacturing
Do you provide complete turnkey solutions?
Yes. We provide end-to-end turnkey solutions including project planning, machinery selection, installation, commissioning, training, and after-sales support.
Do you supply manufacturing machinery?
Yes. We supply advanced manufacturing equipment sourced from reputed global manufacturers, ensuring high productivity, reliability, and long-term performance.
Do you provide factory setup consultancy?
Absolutely. Our consultancy services include factory layout planning, production flow optimization, utility planning, electrical systems, piping design, and infrastructure planning.
