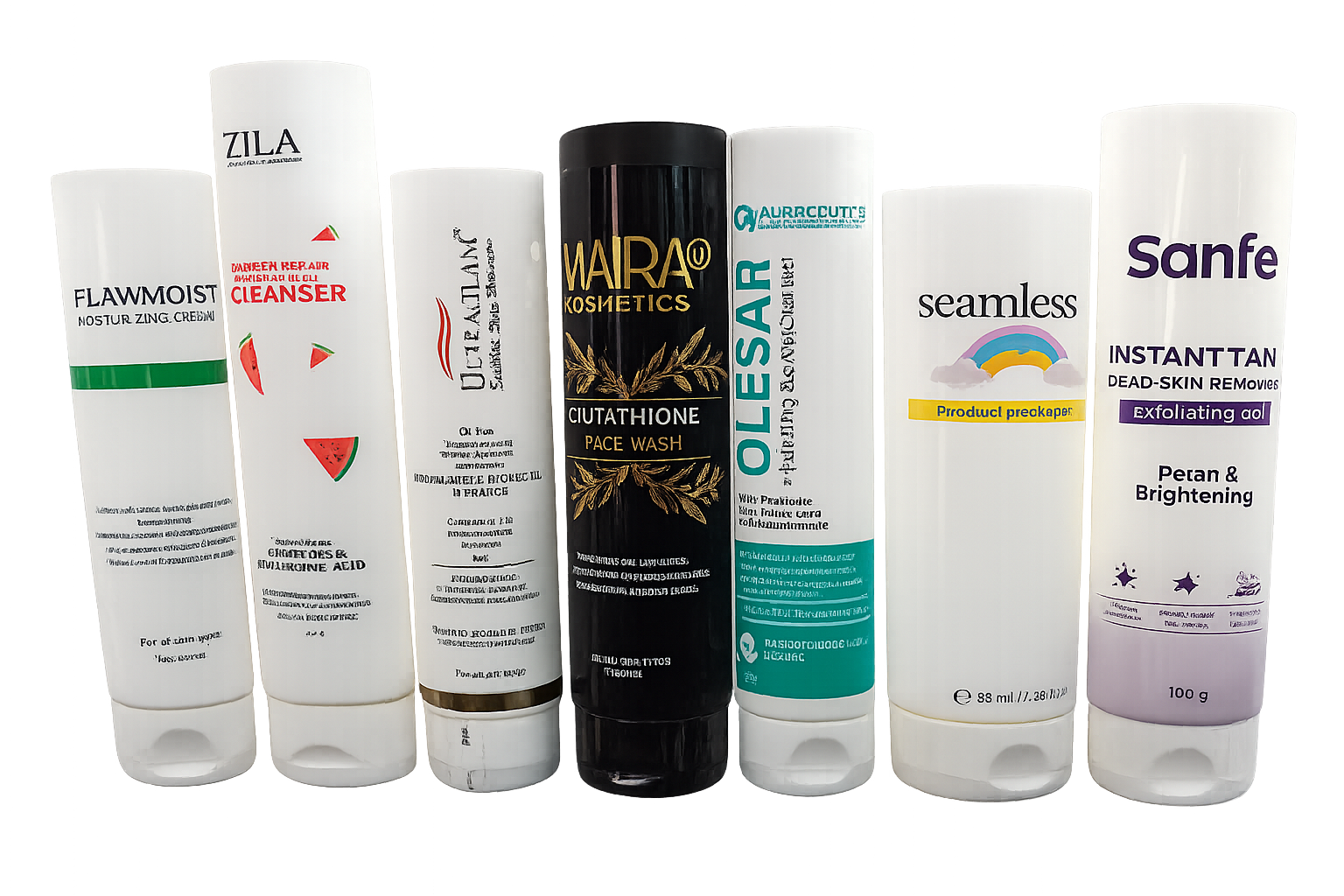

PE Seamless Tube Manufacturing Process
- The manufacturing process of PE seamless tubes is a highly advanced and precision-driven operation designed to produce premium-quality packaging solutions for cosmetic, pharmaceutical, personal care, food, and industrial applications. Modern PE seamless tubes are widely preferred due to their attractive appearance, superior durability, excellent product protection, and flexibility in decoration options. The complete manufacturing process involves multiple stages, including multilayer extrusion, shoulder heading, decoration, hot stamping, labelling, and final capping.

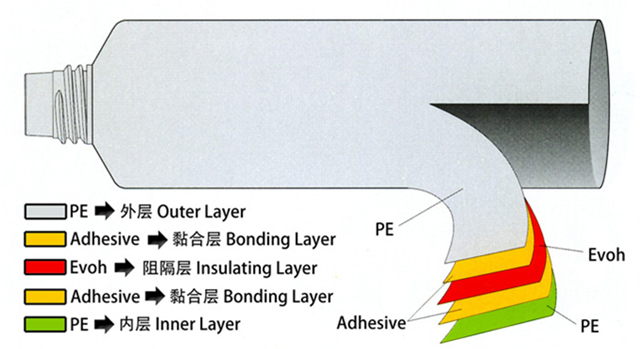

- 3 / 5 Layer Extrusion Process: The process begins with 3-layer or 5-layer extrusion technology, which forms the base tube sleeve. High-quality polyethylene (PE) raw materials are processed through advanced extrusion systems where multiple layers of plastic are combined to create a seamless tube body. The multilayer structure offers excellent barrier properties, improved strength, flexibility, and enhanced product protection. In 5-layer extrusion systems, additional barrier layers are incorporated to provide better resistance against moisture, oxygen, and external contamination, making the tubes suitable for sensitive cosmetic and pharmaceutical products.
- During the extrusion process, the molten plastic material is continuously shaped into tube sleeves of the required diameter and thickness. The tubes are then cooled, calibrated, and cut into precise lengths according to customer specifications. Advanced extrusion technology ensures uniform wall thickness, smooth surface finish, and consistent tube quality throughout the production cycle.
- Tube shoulder heading process: After tube formation, the tubes move to the heading process. In this stage, plastic shoulders are formed & attached to the tube body through a heating and fusion process. This process generally involves vertical injection moulding machines. This operation forms the neck of the tube where the cap will later be fitted. The heading process requires precise temperature control and alignment to ensure leak-proof bonding and high mechanical strength.
- Tube Decoration :Once the shoulder heading process is completed, the tubes proceed to the decoration stage, which plays a vital role in enhancing the visual appeal and branding of the final product. Several advanced decoration technologies are used based on design requirements and product positioning.
- Dry Offset Printing :One of the most widely used decoration methods is dry offset printing, which allows high-speed multicolor printing directly onto the tube surface. Dry offset printing provides excellent print quality, sharp graphics, precise color registration, and smooth gradients, making it ideal for large-scale cosmetic and personal care packaging applications.
- Screen Printing: In addition to dry offset printing, screen printing is also used for specific design effects and premium finishes. Screen printing offers excellent ink opacity, vibrant colours, and the ability to print special effects such as metallic, matte, glossy, and textured finishes. This process is particularly suitable for high-end cosmetic and pharmaceutical packaging where premium appearance is important.
- Labelling of Tubes: The tubes may also undergo labelling operations, where pre-printed labels are accurately applied onto the tube surface. Labelling provides flexibility in design customisation and is often used for smaller production batches or products requiring frequent design changes.
- Hot stamping process: Another important decoration process is hot stamping, which adds metallic foil effects and premium decorative finishes to the tubes. Gold, silver, holographic, and coloured foil stamping enhance the overall product appearance and provide a luxurious look suitable for premium cosmetic and personal care brands.
- Tube capping process: After the decoration process, the tubes move to the capping stage. Different types of caps such as flip-top caps, stand-up caps, nozzle caps, and screw caps are automatically fitted using high-speed capping machines. Proper cap fitting ensures leak-proof packaging, ease of use, and product safety during storage and transportation.
- Quality Inspection: The final stage of the manufacturing process involves quality inspection and packing. Each tube is thoroughly checked for dimensional accuracy, print quality, shoulder bonding strength, cap fitting, surface finish, and leakage performance. Strict quality control procedures ensure that only defect-free tubes meet customer specifications and industry standards.
- The complete PE seamless tube manufacturing process combines advanced technology, precision engineering, and modern decoration techniques to produce high-quality packaging solutions with excellent functionality, durability, and visual appeal.
Frequently Asked Questions
What industries do you serve?
We primarily serve the pharmaceutical and cosmetic packaging industries, providing complete solutions for ABL laminated tubes, PBL laminated tubes, and PE seamless cosmetic tube manufacturing.
What types of tube manufacturing projects do you undertake?
We undertake complete turnkey projects for:
1. ABL (Aluminium Barrier Laminate) Tube Manufacturing
2. PBL (Plastic Barrier Laminate) Tube Manufacturing
3. PE Seamless Cosmetic Tube Manufacturing
1. ABL (Aluminium Barrier Laminate) Tube Manufacturing
2. PBL (Plastic Barrier Laminate) Tube Manufacturing
3. PE Seamless Cosmetic Tube Manufacturing
Do you provide complete turnkey solutions?
Yes. We provide end-to-end turnkey solutions including project planning, machinery selection, installation, commissioning, training, and after-sales support.
Do you supply manufacturing machinery?
Yes. We supply advanced manufacturing equipment sourced from reputed global manufacturers, ensuring high productivity, reliability, and long-term performance.
Do you provide factory setup consultancy?
Absolutely. Our consultancy services include factory layout planning, production flow optimization, utility planning, electrical systems, piping design, and infrastructure planning.
